HC 18

HC 22-18 ZR4 PRODUCT FEATURES

• HC 22-18 ZR folding, vertical 22 meters horizontal 18 meters boom length and +3 meters end hose.
• Driving by Track ability
• Wireless radio remote control proportional system
• Work without counterweight
• Variable foot-print
• Installation in tight spaces
• Splittable boom group
• Splittable tracks
• 4mt ceiling height boom unfolding ability
• 8 bar air pressure
• Led lighting
• Engine control unit with electronic display
• Noise isolated engine cabin
• Keyless disassembly feature
• Possibility to use as a hydraulic spider when necessary

WHERE HC 22-18 ZR4 TRACKED CONCRETE PLACER IS USED?

• HEPP projects
• Subway construction sites
• Dam culverts and turbines
• Creek reclamation
• Bored pile concrete pourings
• For projects with a ceiling height of 4 mt
• Pre-stressed beam concrete pourings
• Intermediate floor or factory field concrete
• In areas where the mobile concrete pump cannot enter
• Special projects – airport – such as bridge legs etc.

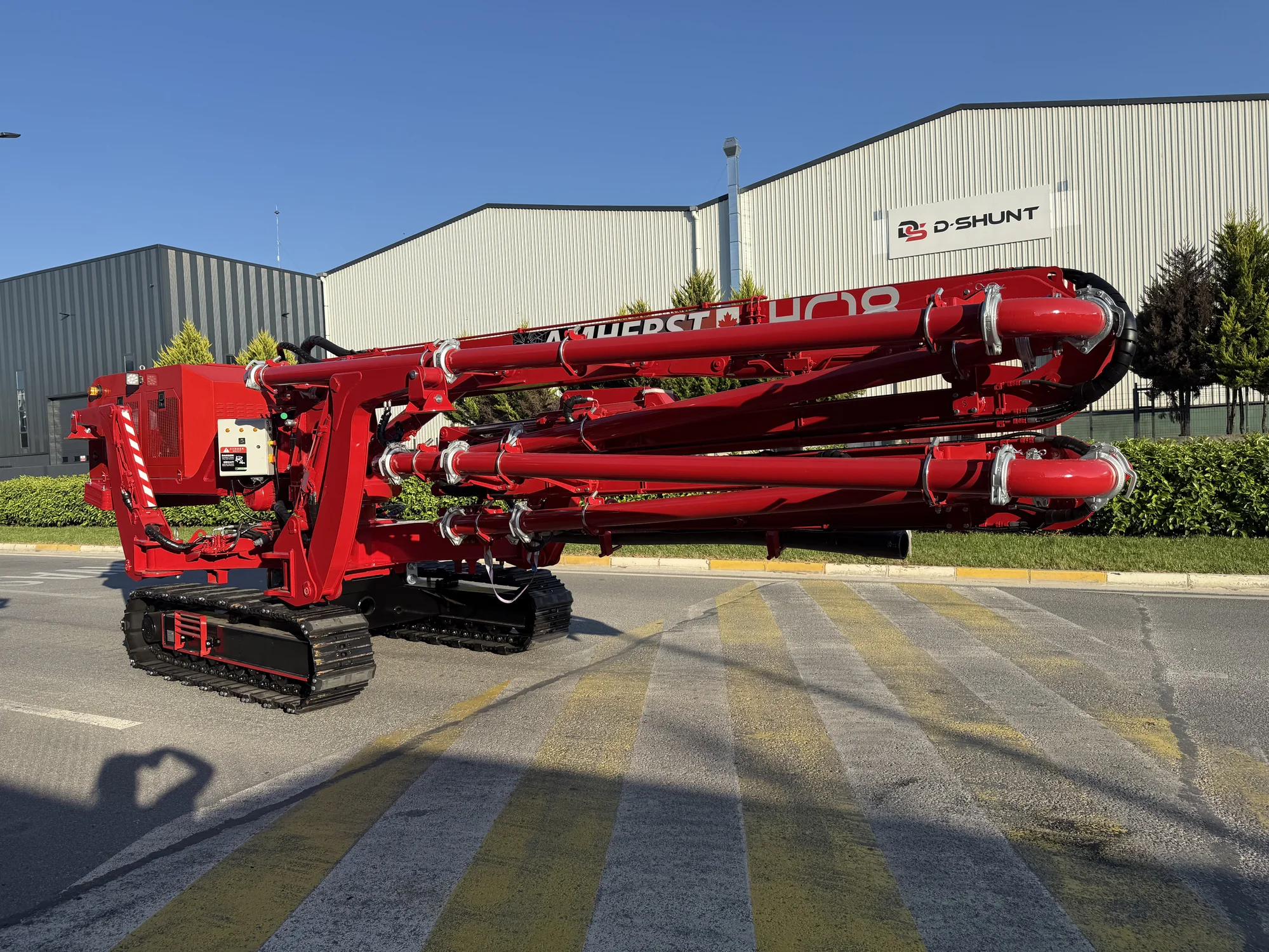

HC18 Track Spider Concrete Placing Boom (HC 22-18 ZR4) is a highly versatile and powerful solution engineered for demanding concrete placement tasks in specialized and challenging environments. It boasts an impressive 18-meter horizontal reach and 22-meter vertical reach, along with an additional 3-meter end hose, ensuring extensive coverage across its expansive 1017m² working area. Powered by a robust 74 Hp engine, the HC18 delivers optimal performance with remarkable efficiency.

A key advantage of the HC18 is its unique ability to work without a counterweight, which significantly increases its adaptability and reduces setup complexities. Combined with a variable footprint and splittable tracks and boom group, this allows for installation and operation in extremely tight spaces, including projects with a challenging 4-meter ceiling height for boom unfolding.

The HC18 is equipped with a proportional wireless radio remote control for safe and precise operation, LED lighting for visibility, and an engine control unit with an electronic display for easy monitoring. Its noise-isolated engine cabin enhances worker comfort, while the keyless disassembly feature and the possibility to use it as a hydraulic spider further underscore its versatility.

This robust tracked concrete placer is ideal for a wide array of critical applications, including HEPP projects, subway construction sites, dam culverts and turbines, creek reclamations, bored pile concrete pourings, and pre-stressed beam concrete pourings. It excels in intermediate floor or factory field concrete, and any special project where mobile concrete pumps cannot enter, such as airport or bridge leg constructions. With a total weight of 8400 kg, the HC18 is built for efficiency, adaptability, and long-term durability, making it an indispensable asset for modern construction.
