What Is a Crawler Shotcrete Boom?
A crawler shotcrete boom is a tracked machine that carries a spraying nozzle on a controlled boom, applying sprayed concrete to tunnel linings, mine drifts, excavation supports and slope faces. The alternative is a nozzleman working by hand, and that is precisely the problem the machine solves.
Shotcrete quality depends on nozzle distance, angle and steadiness. A person holding a nozzle in dust, noise and rebound cannot hold those constant for a full pass, which is why hand-sprayed layers vary in thickness and lose material to rebound. A boom can. Mechanised spraying therefore improves two things at once: it removes the operator from under freshly excavated ground, and it makes the result repeatable.
Key Benefits of Crawler Shotcrete Booms
- Operator safety. Remote control and an operator panel keep the operator clear of the rebound zone and away from unsupported ground.
- Lower rebound, lower material cost. Consistent nozzle geometry means more of the mix stays on the face instead of falling to the invert.
- Uniform surface quality. A steady pass produces even layer thickness — important where thickness is specified and measured.
- Continuous mobility on bad ground. Crawler tracks climb muck piles, cross invert steps and hold on steep surfaces without a prepared running surface.
- Faster support cycle. Higher spraying capacity closes a section in fewer passes, shortening the window in which new ground stands unsupported.
- Access into confined profiles. Compact machine dimensions allow work in drifts, adits and tight tunnel cross-sections.
Royalmac Crawler Shotcrete Boom Models

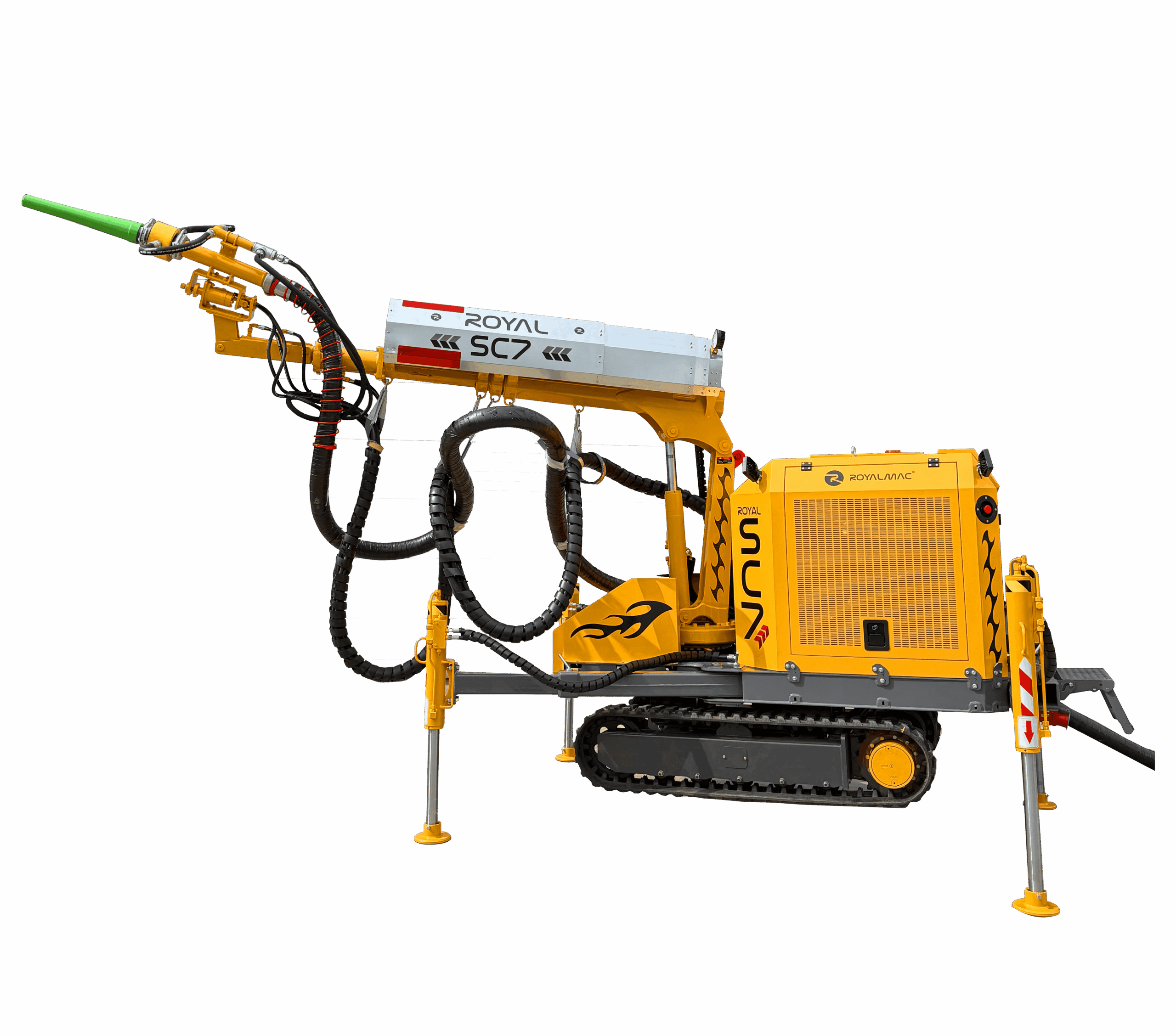

SC7
The compact model. It is specified where the cross-section is narrow — drifts, adits, small-bore tunnels and confined repair works — and where a larger machine has no room to swing the boom. Tracked mobility, remote control with operator panel, and precision boom control for low rebound. See the SC7 product page.
SC12
The larger model, for full tunnel cross-sections, portal works and large slope faces where the profile cannot be covered efficiently from a compact machine. Same tracked chassis principle and remote control, at a scale suited to wide profiles and longer spraying distances. See the SC12 product page.
Application Areas
- Tunnel lining and primary support in road, rail and metro tunnels
- Mine drifts, galleries and underground excavation support
- Slope and embankment stabilisation
- Portal works and cut-and-cover sections
- Repair and rehabilitation of existing linings
- Hydroelectric and dam-related underground works
Model Comparison Table
|
Model |
Class |
Mobility |
Control |
Best For |
|---|---|---|---|---|
|
SC7 |
Compact |
Crawler tracks |
Remote control + operator panel |
Narrow cross-sections, drifts, adits, confined repair work |
|
SC12 |
Large |
Crawler tracks |
Remote control + operator panel |
Full tunnel profiles, portal works, large slope faces |
Both models share precision boom control for low rebound, high spraying capacity and operation clear of the spray zone. For detailed technical specifications on either machine, contact Royalmac.
