Track Spider Concrete Placing Booms

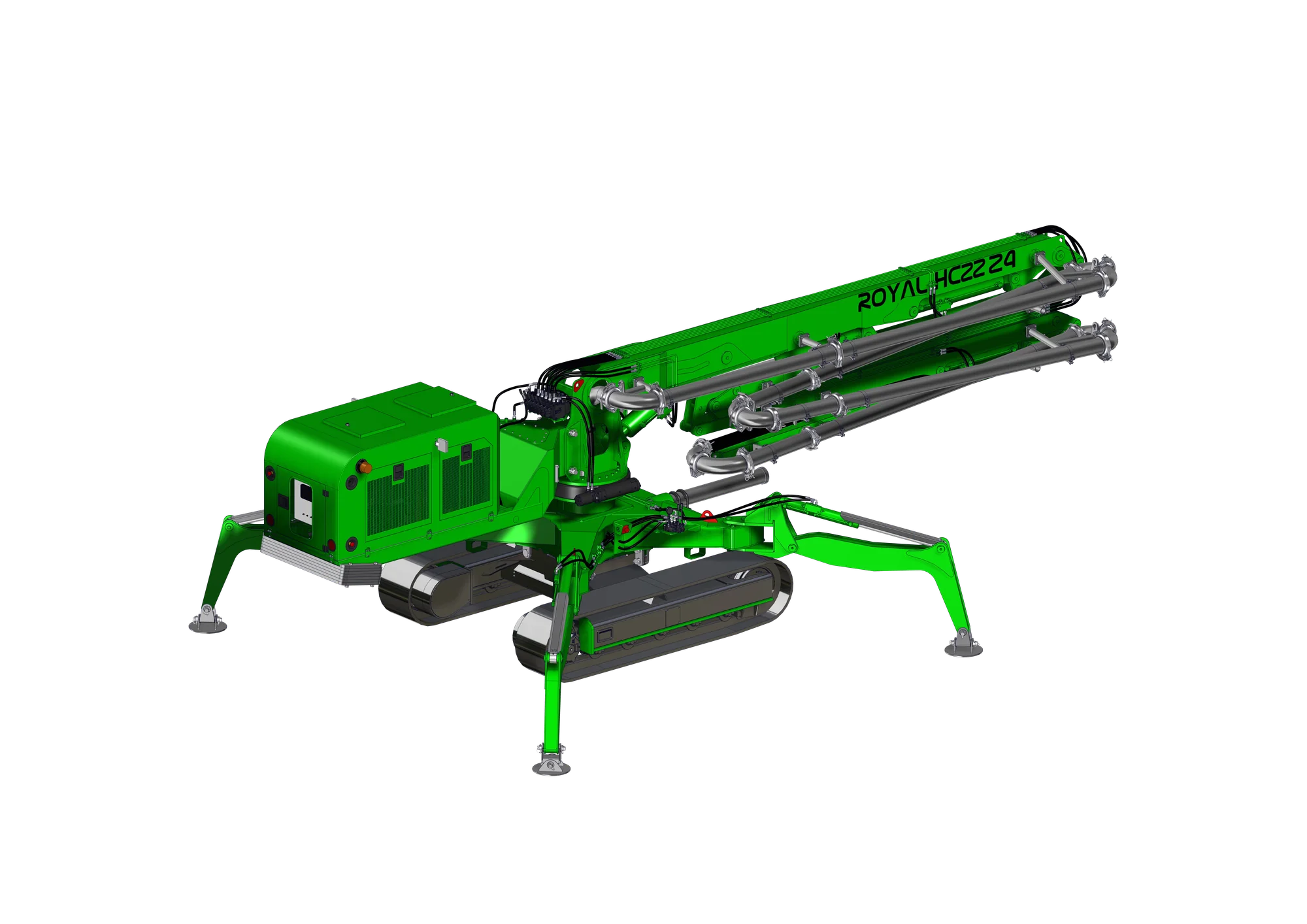

HC 22

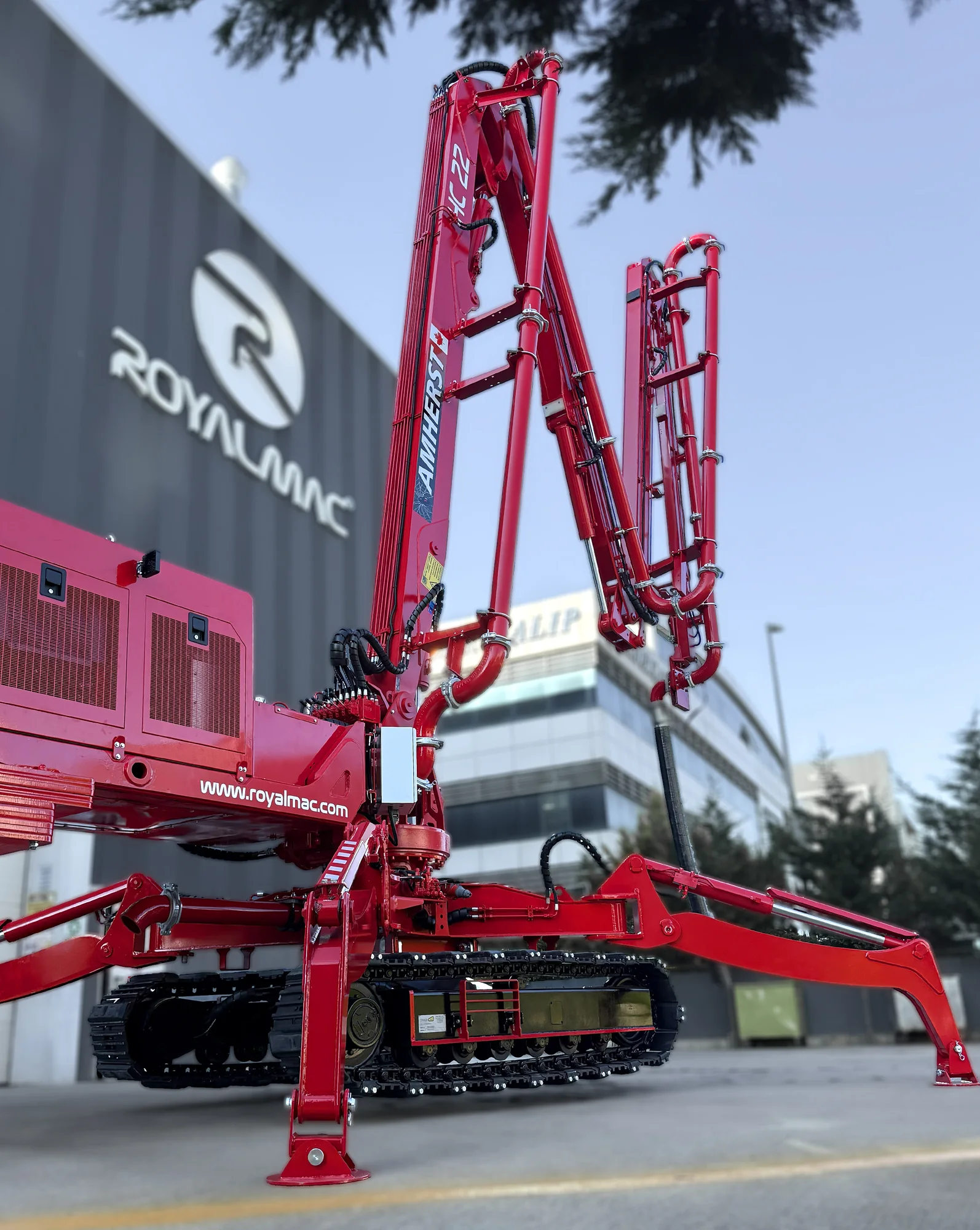

HC 22 PRODUCT FEATURES

The HC 22 has a 22-meter vertical reach, an 18-meter horizontal boom reach, and a +3 m end hose.
Tracked mobility system
Wireless remote-controlled proportional control system
Can be operated without counterweights
Scissor-type outrigger opening system
Suitable for installation in confined spaces
Modular boom assembly
Detachable crawler tracks
Boom operation possible under 4 m ceiling height
8 bar air pressure
LED lighting
Electronic engine control unit with display
Sound-insulated cabin
Tool-free disassembly feature
Can be used as a hydraulic spider crane when required

WHERE IS THE HC 22 TRACKED CONCRETE DISTRIBUTOR USED?

Hydroelectric power plant (HEPP) projects
Metro construction sites
Dams, culverts, and turbine structures
River rehabilitation projects
Bored pile concrete pouring applications
Projects with a ceiling height of 4 meters
Prestressed beam concrete pouring applications
Intermediate floors and factory floor concrete works
Areas inaccessible to mobile concrete pumps
Special projects such as airports and bridge piers

REQUEST A QUOTE

Track Spider Concrete Placing Booms

HC 22

Horizontal Reach:	22 M
Vertical Reach:	26 M
Coverage Area:	1500 m²
Total Weight:	11200 KG / 24700 LBS
End Hose Length:	4 M
Power / Voltage:	7.5 KW, 400–480V, 3 PHASE
Engine:	55 KW / 74 HP

Track Spider Concrete Placing Booms

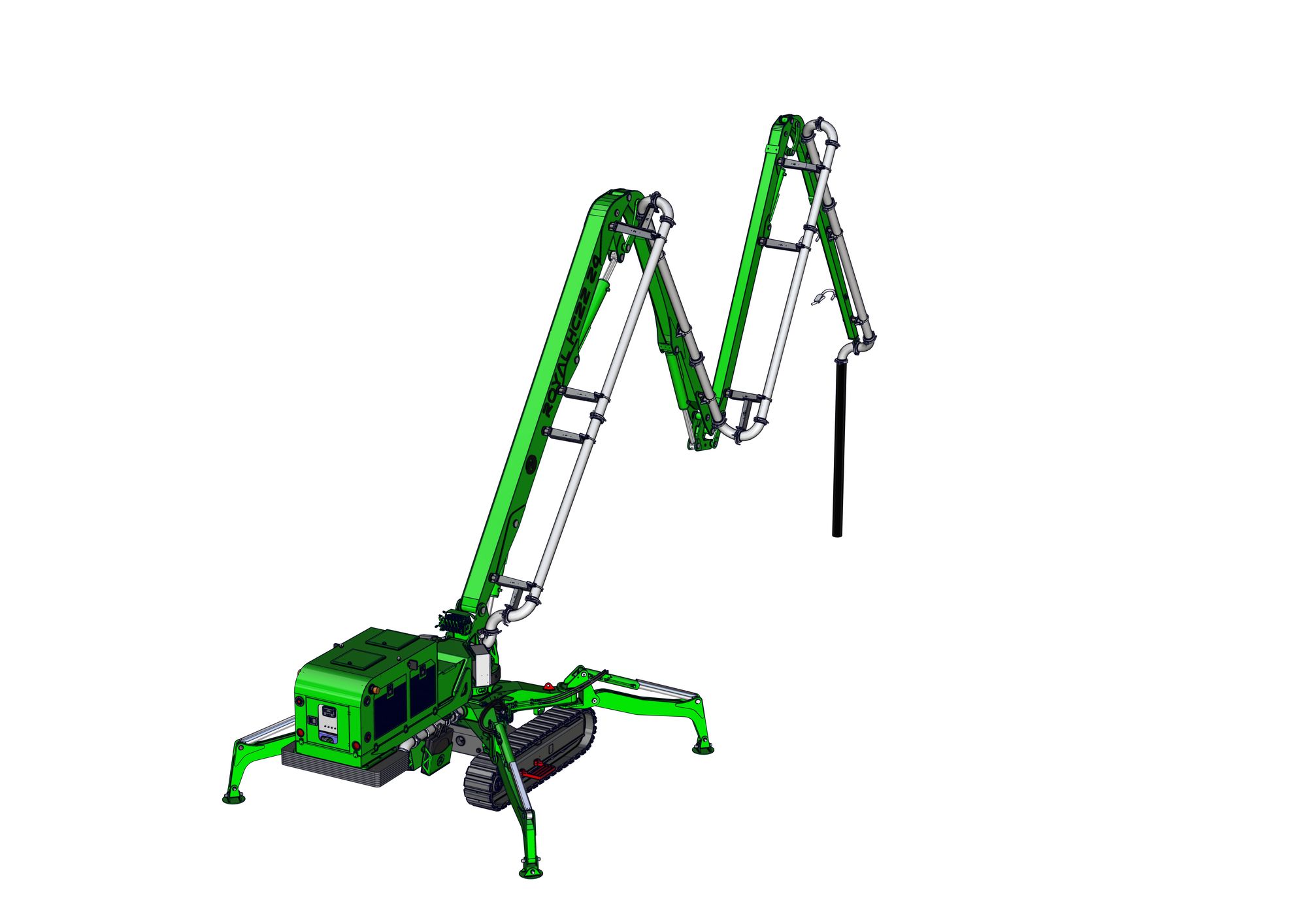

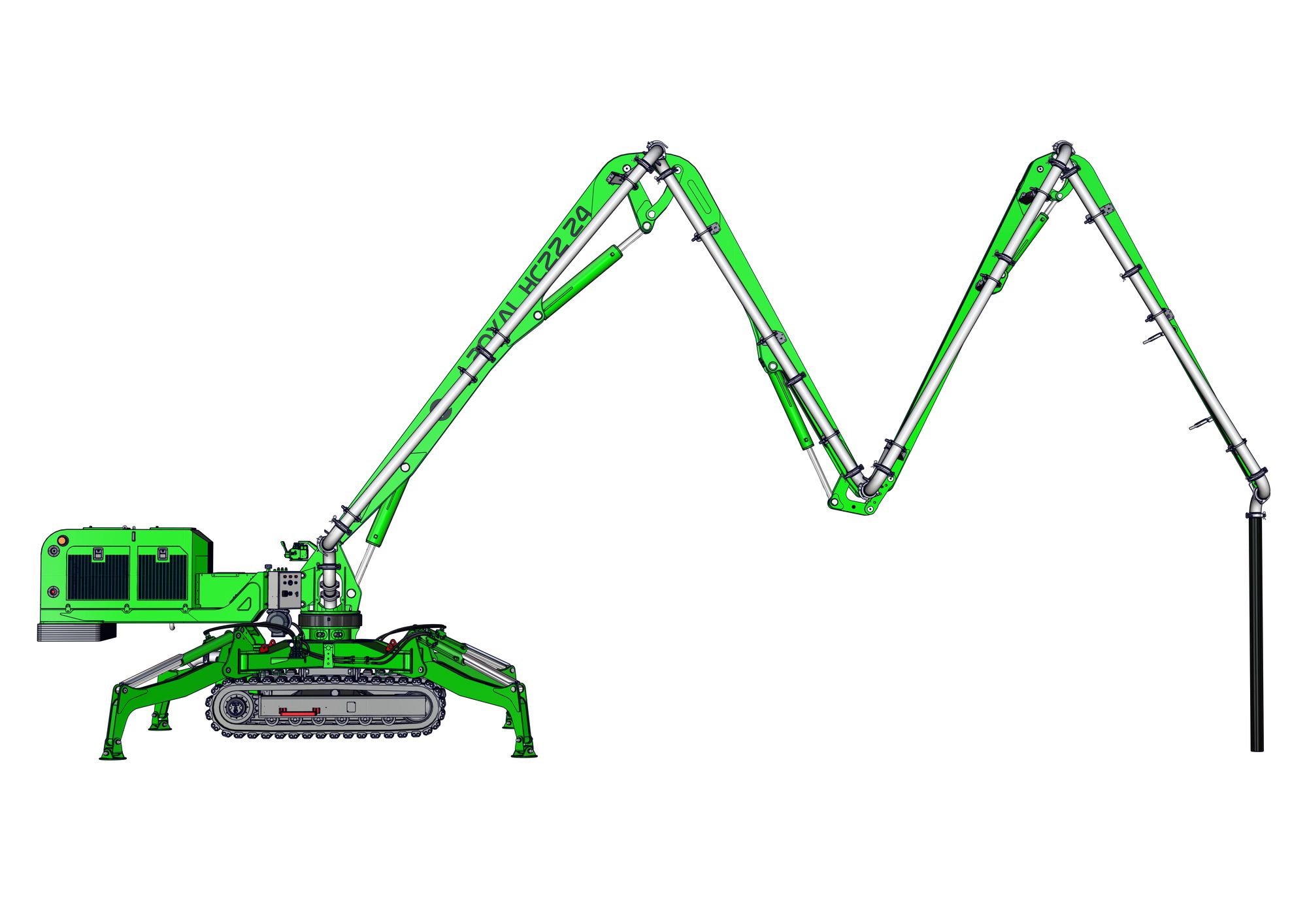

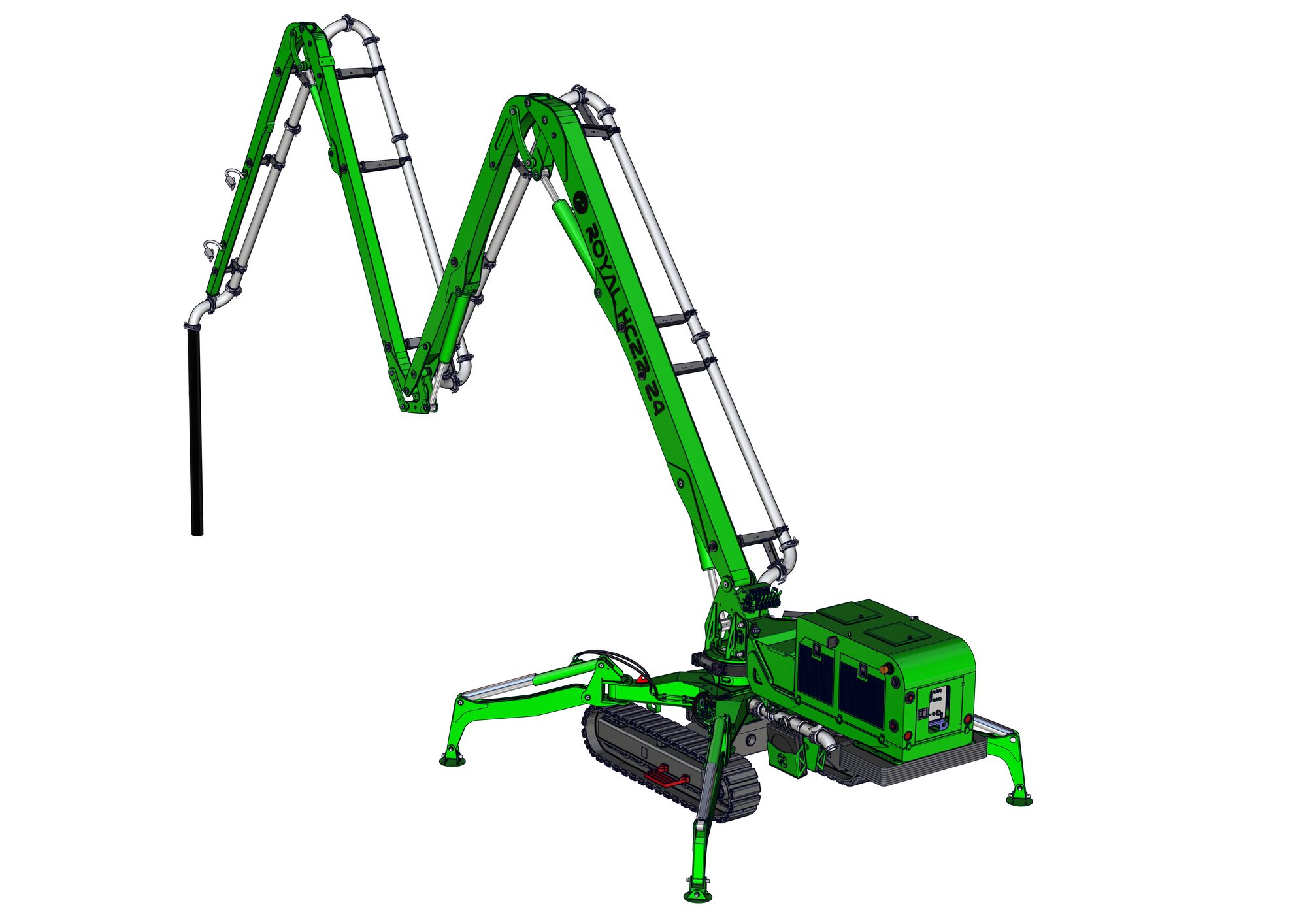

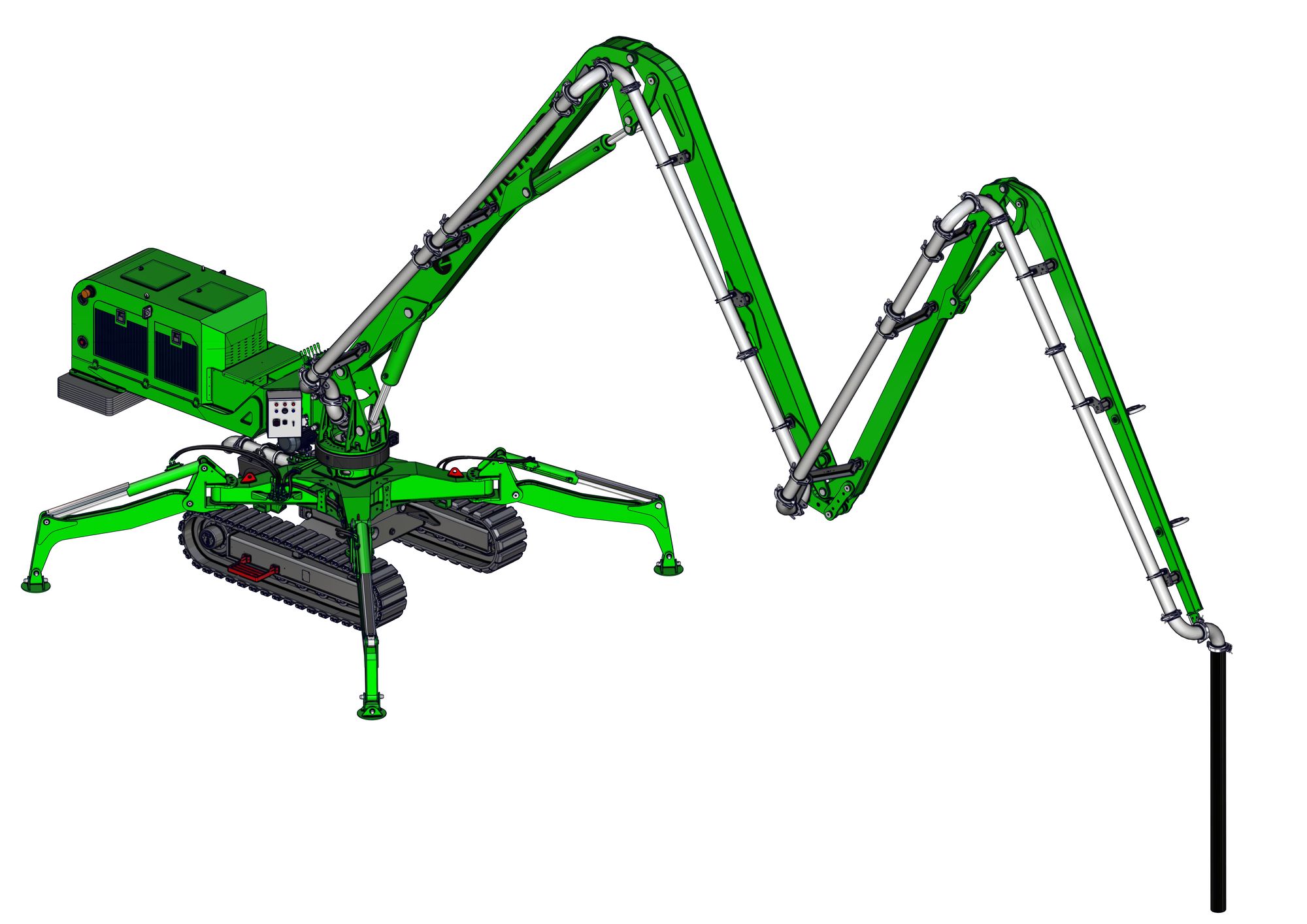

GALLERY

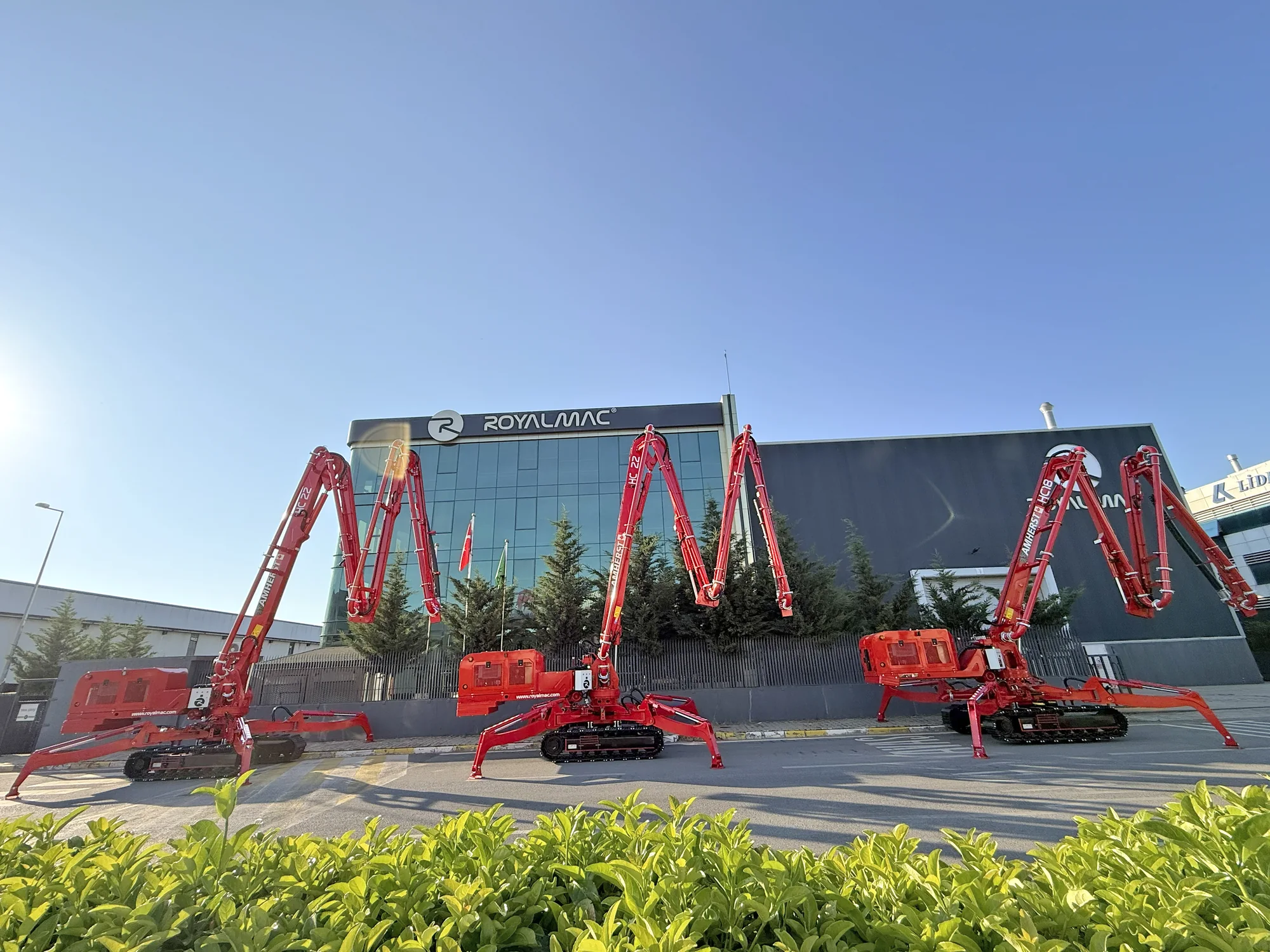

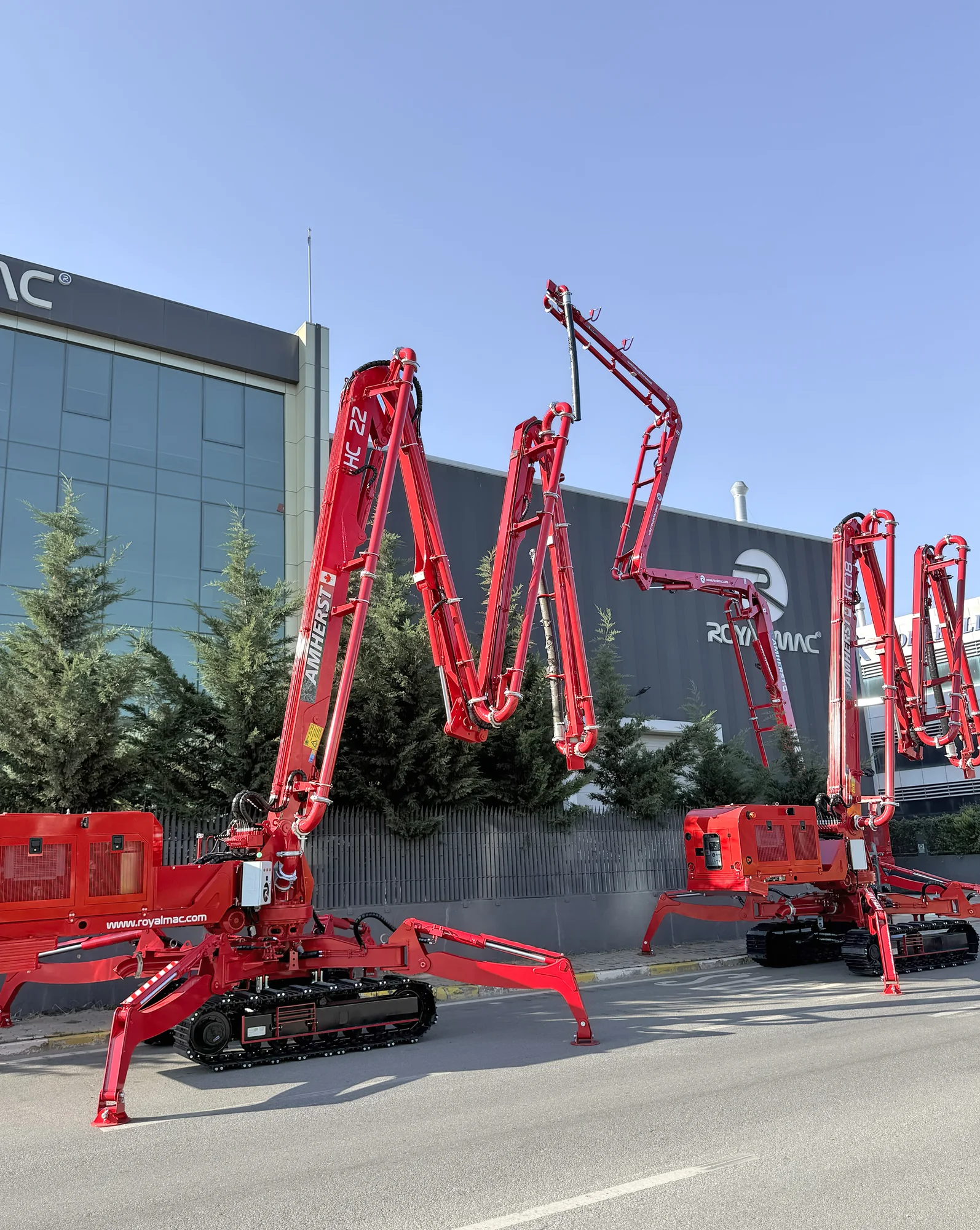

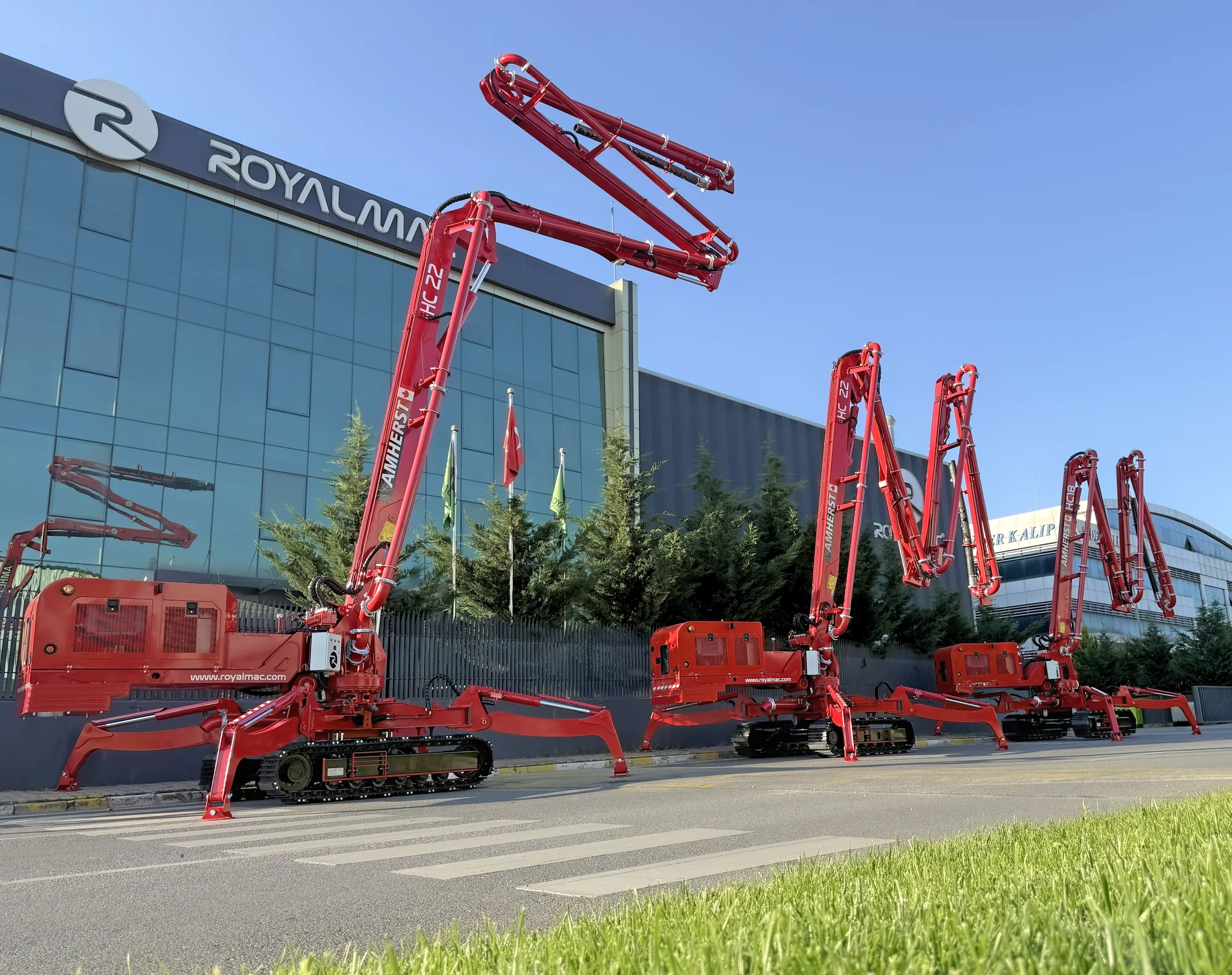

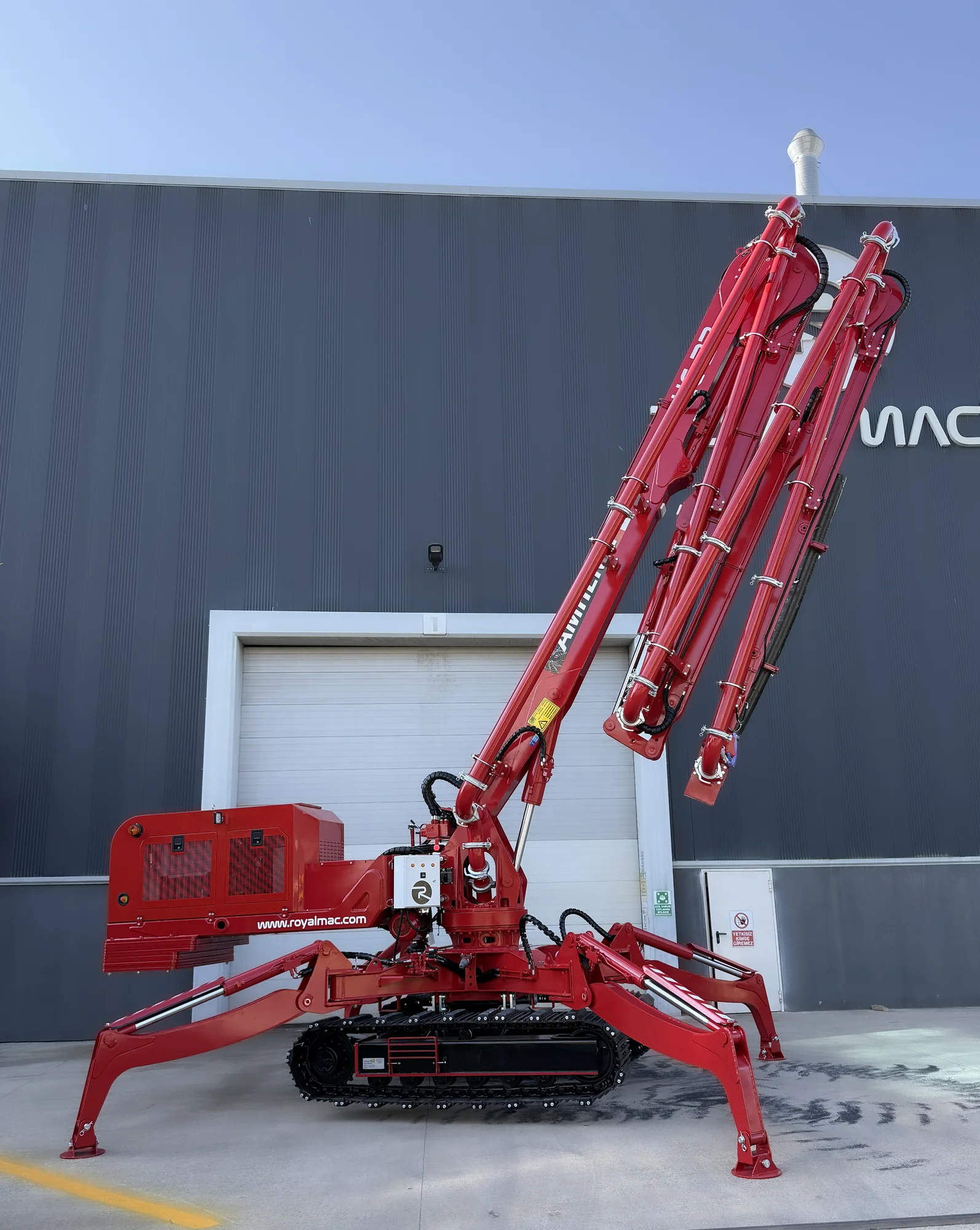

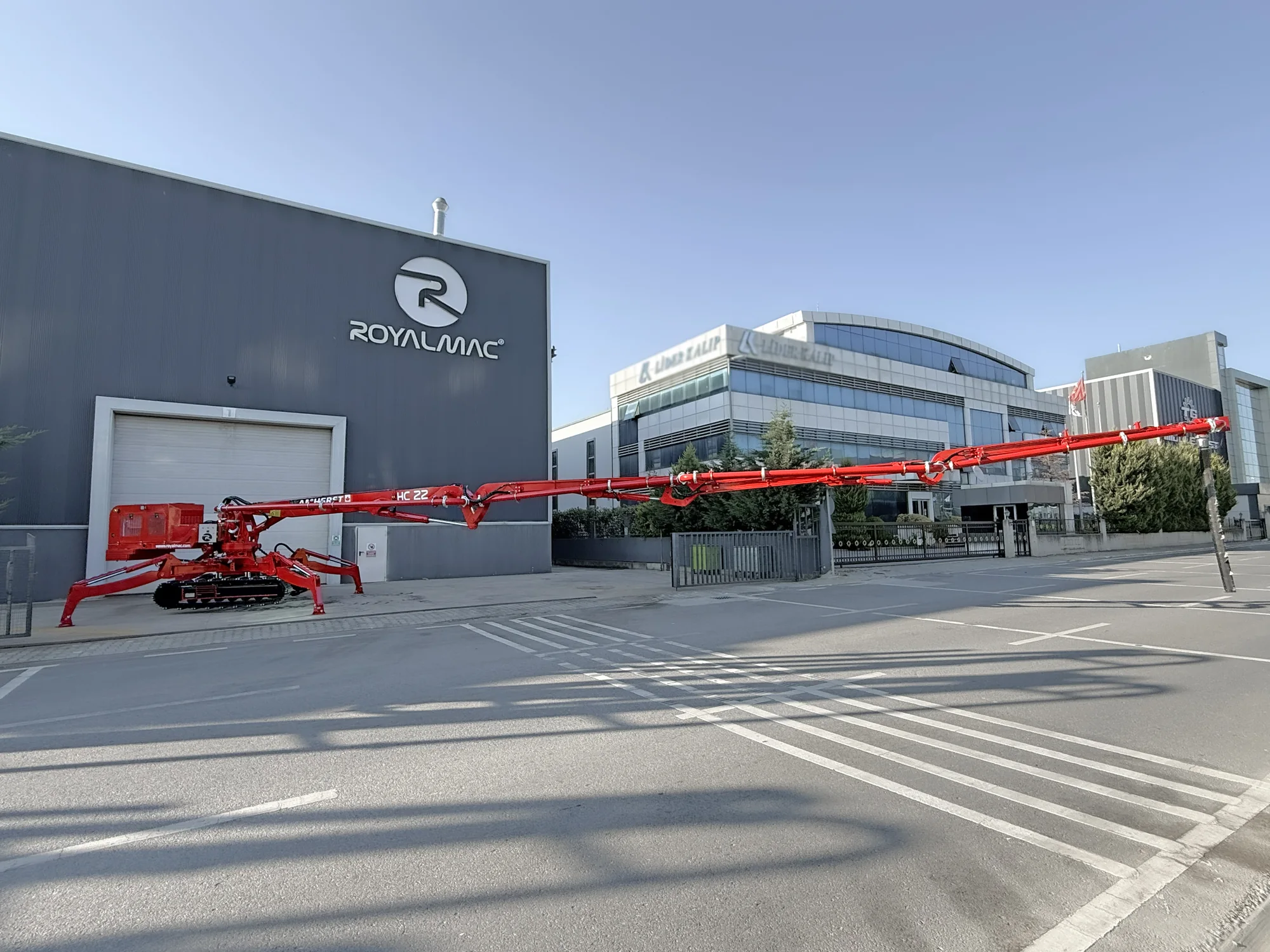

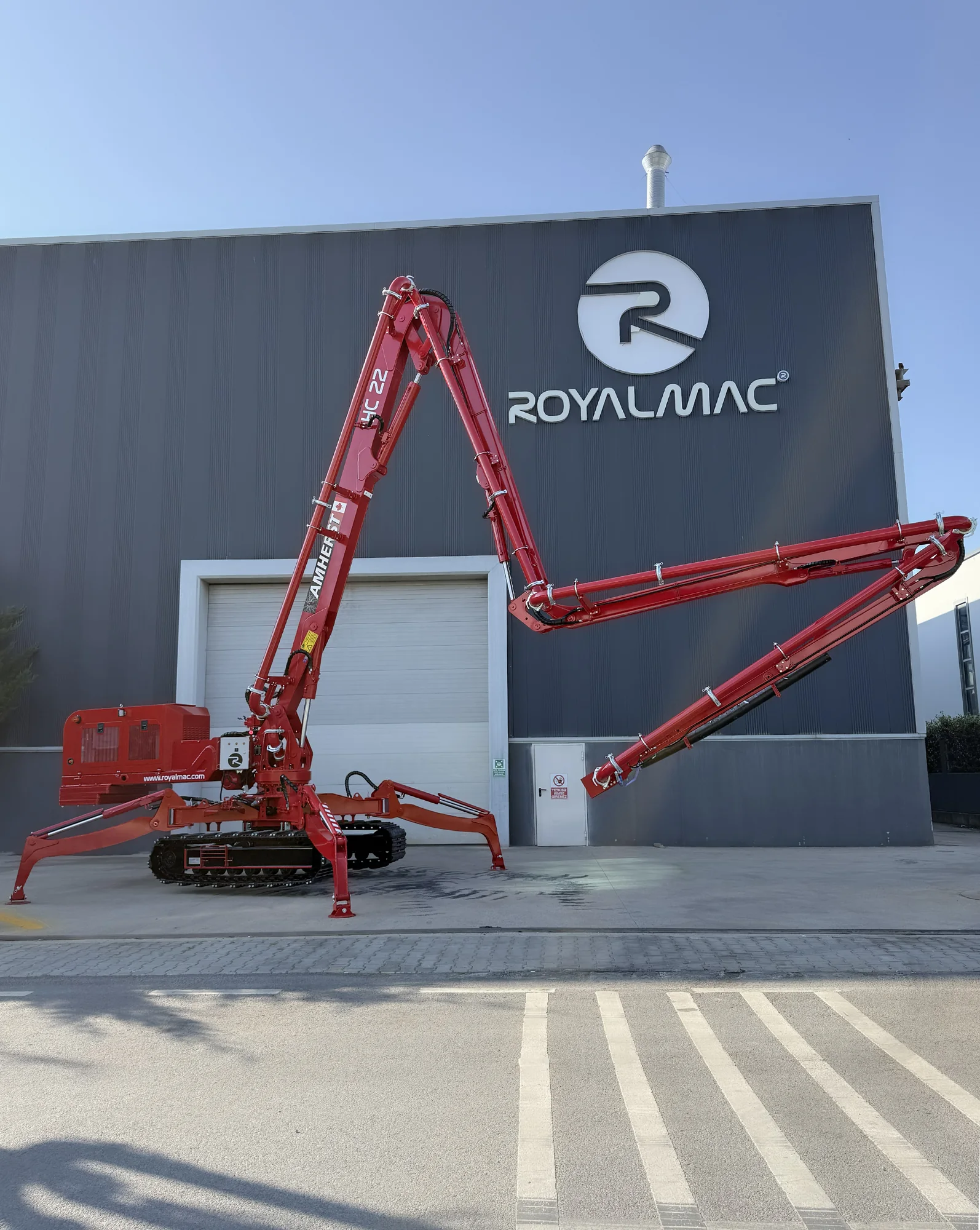

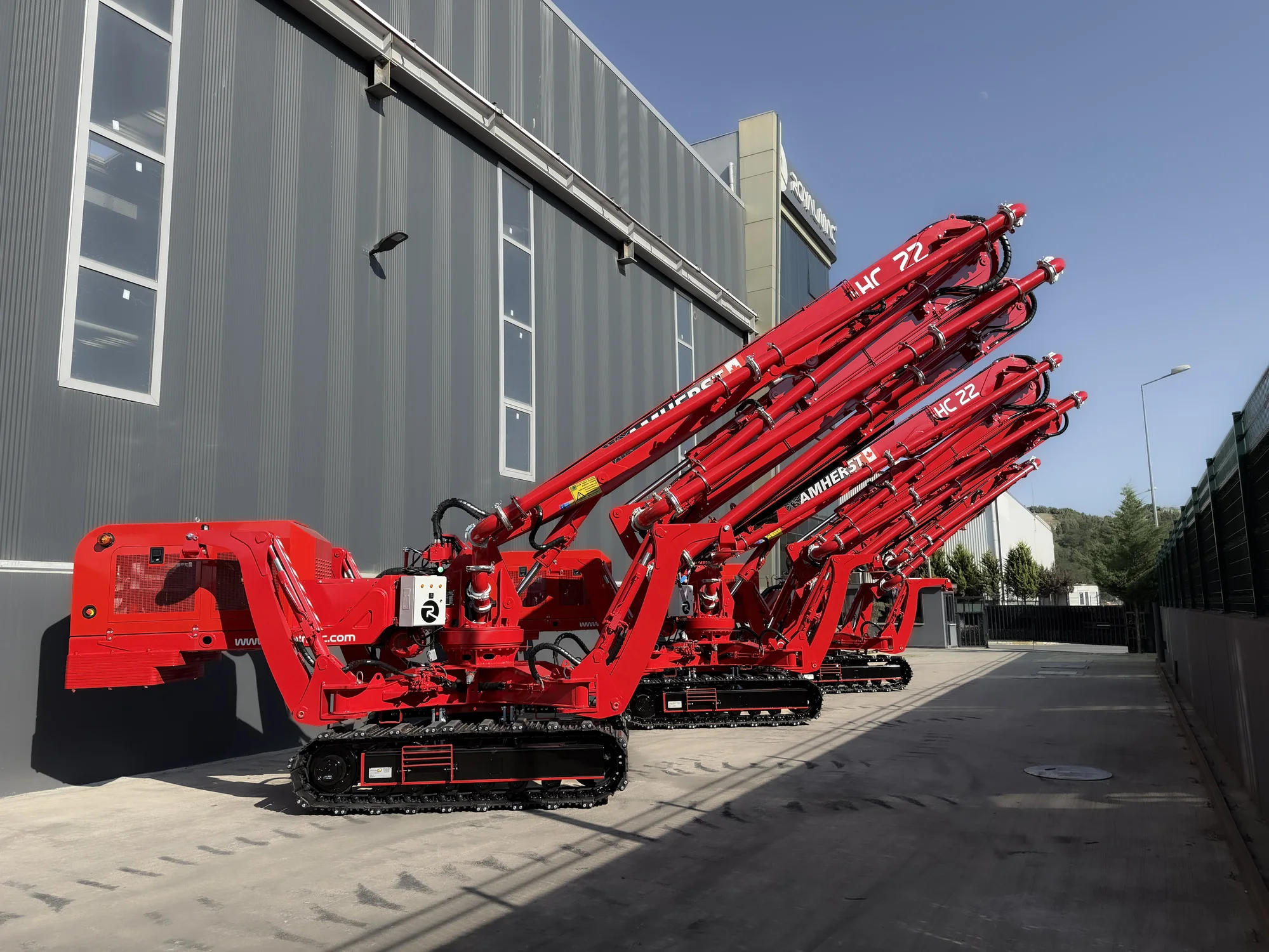

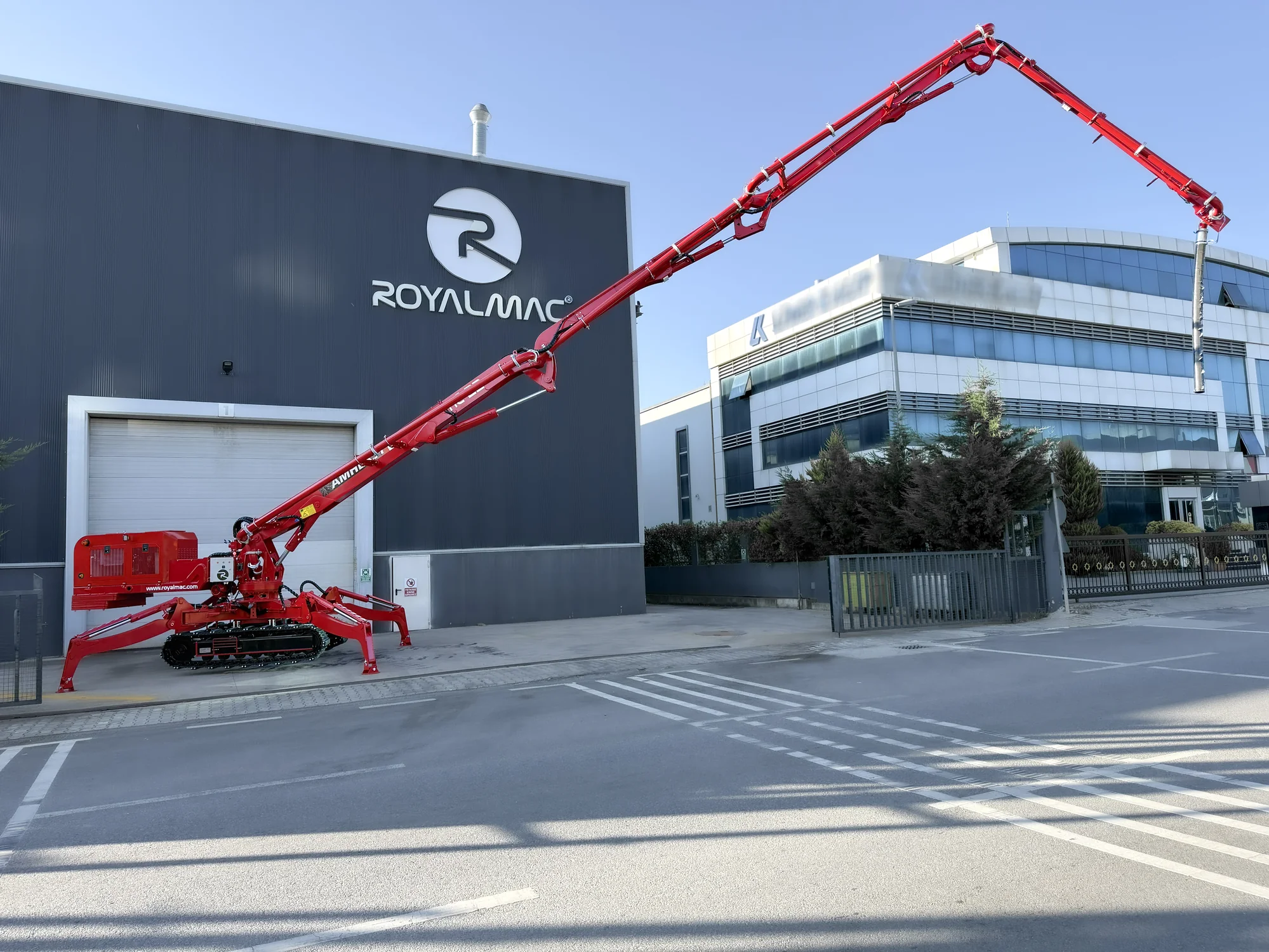

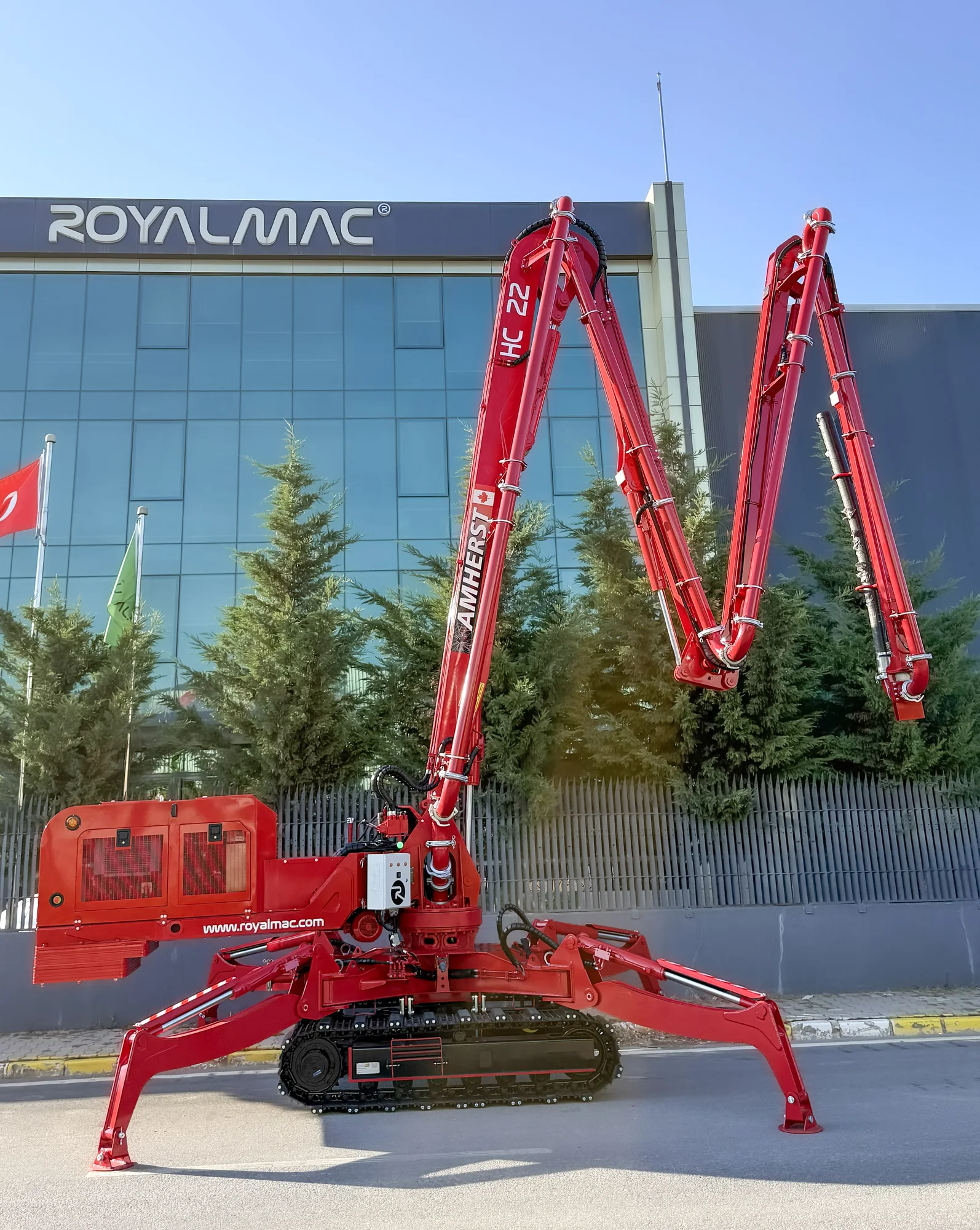

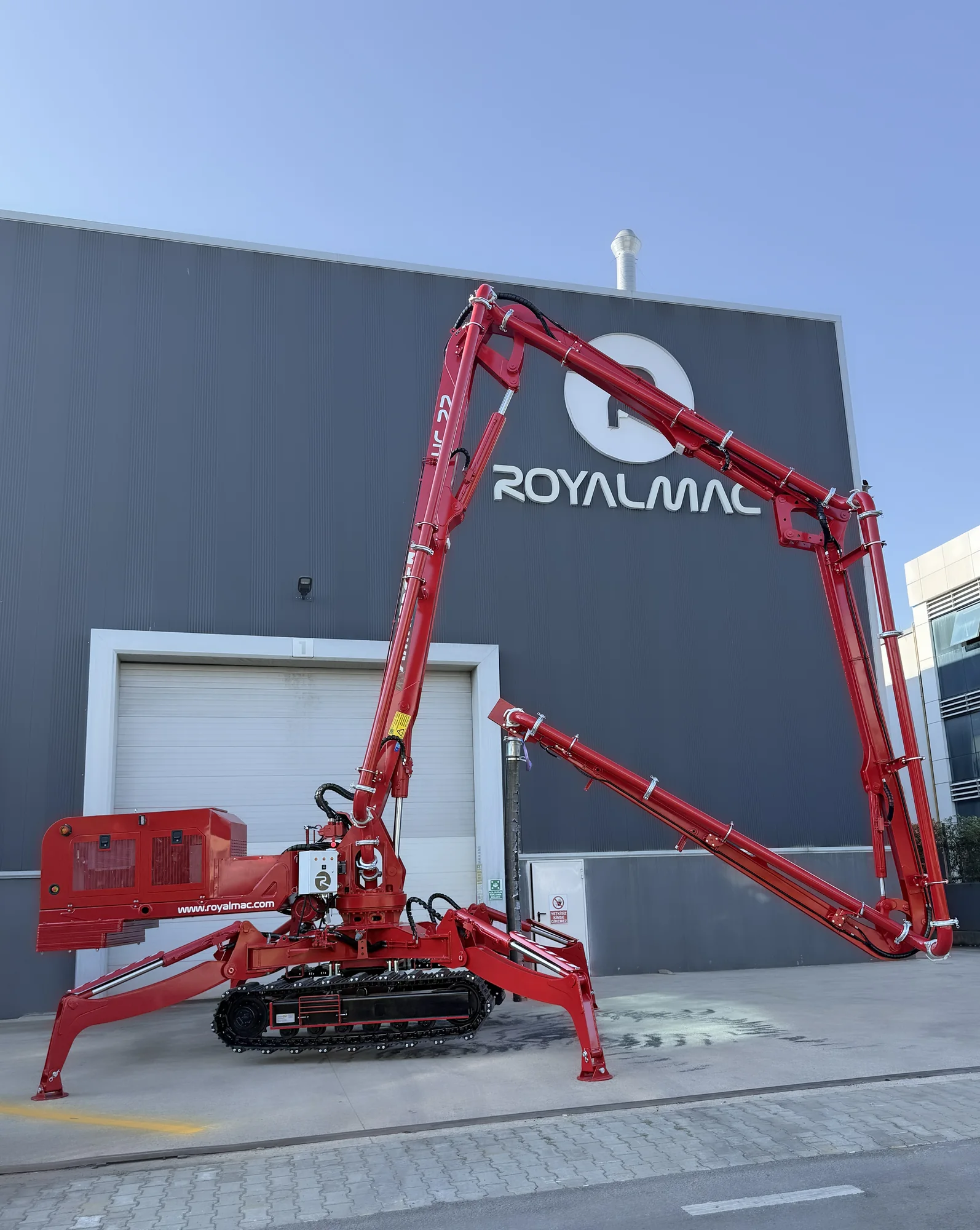

PHOTO GALLERY

GENERAL DESCRIPTION
TECHNICIAL SPECIFICATIONS

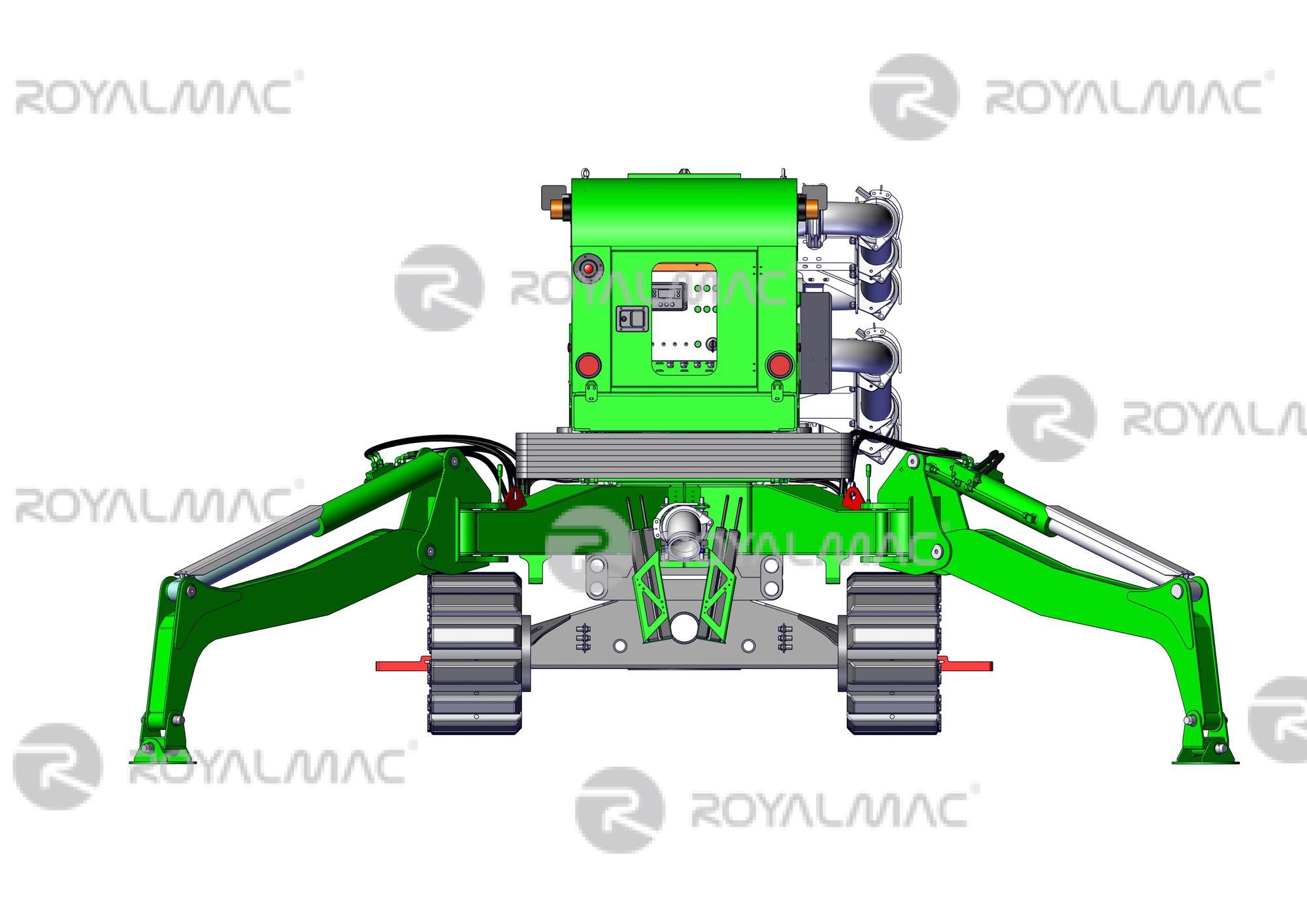

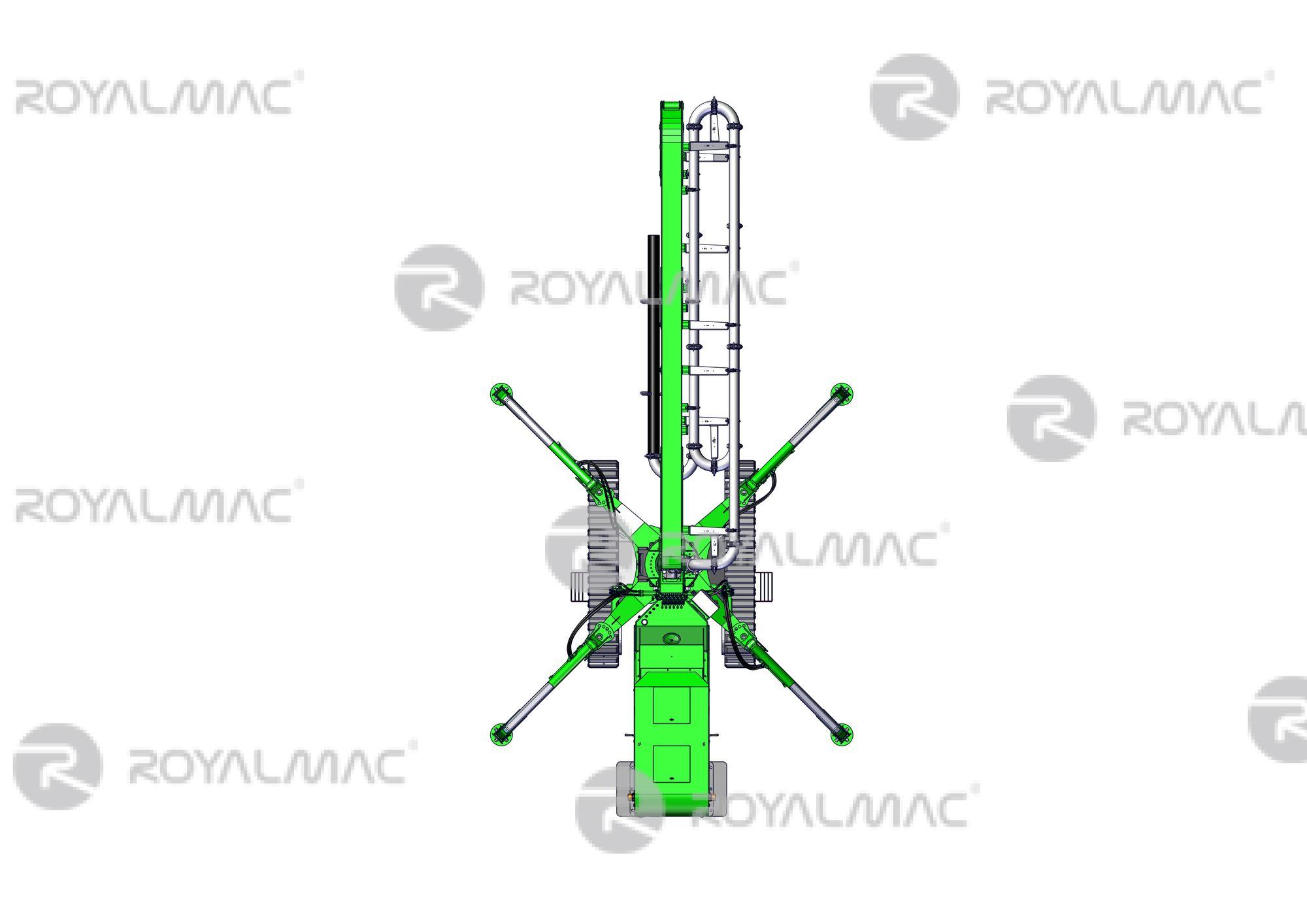

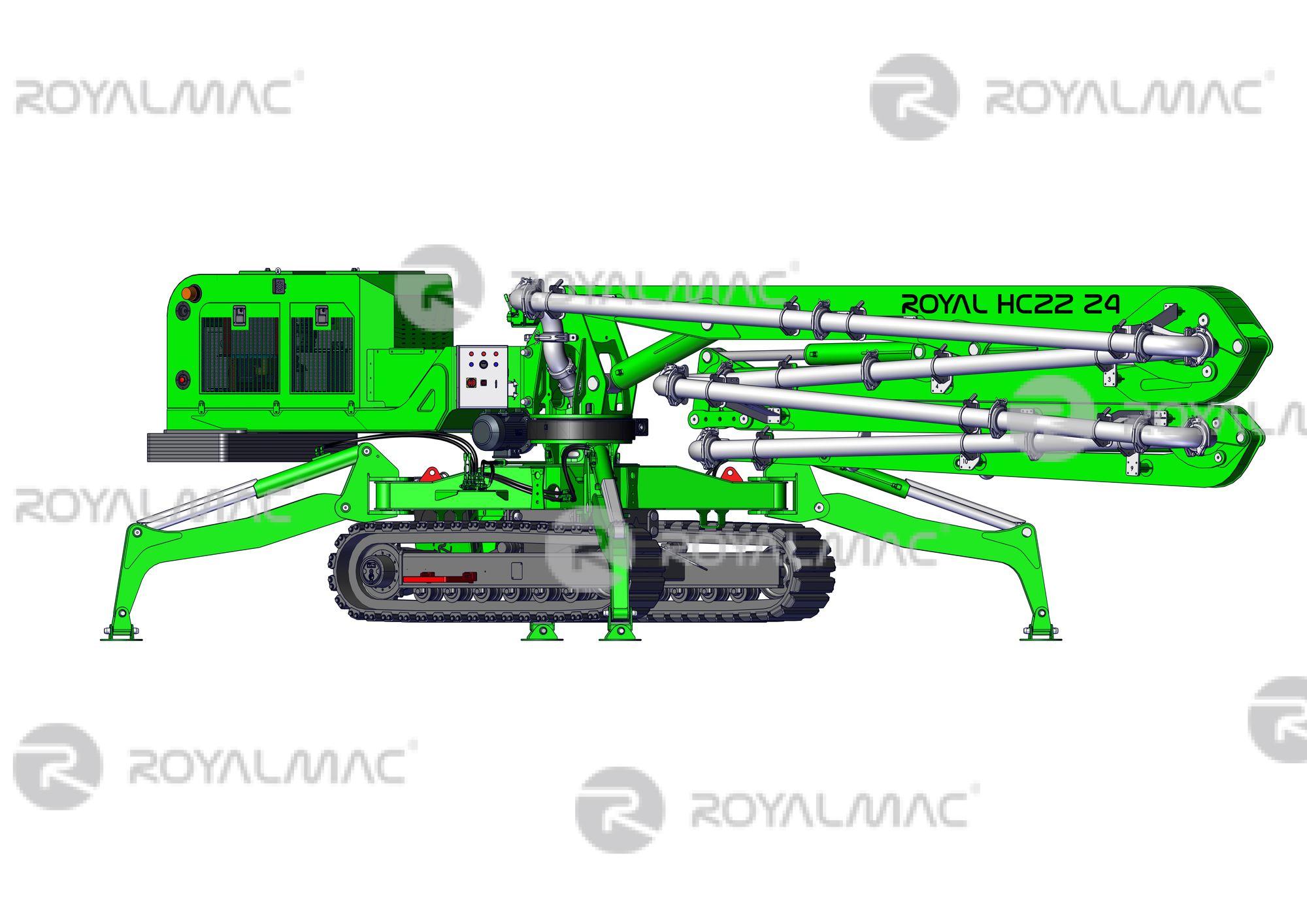

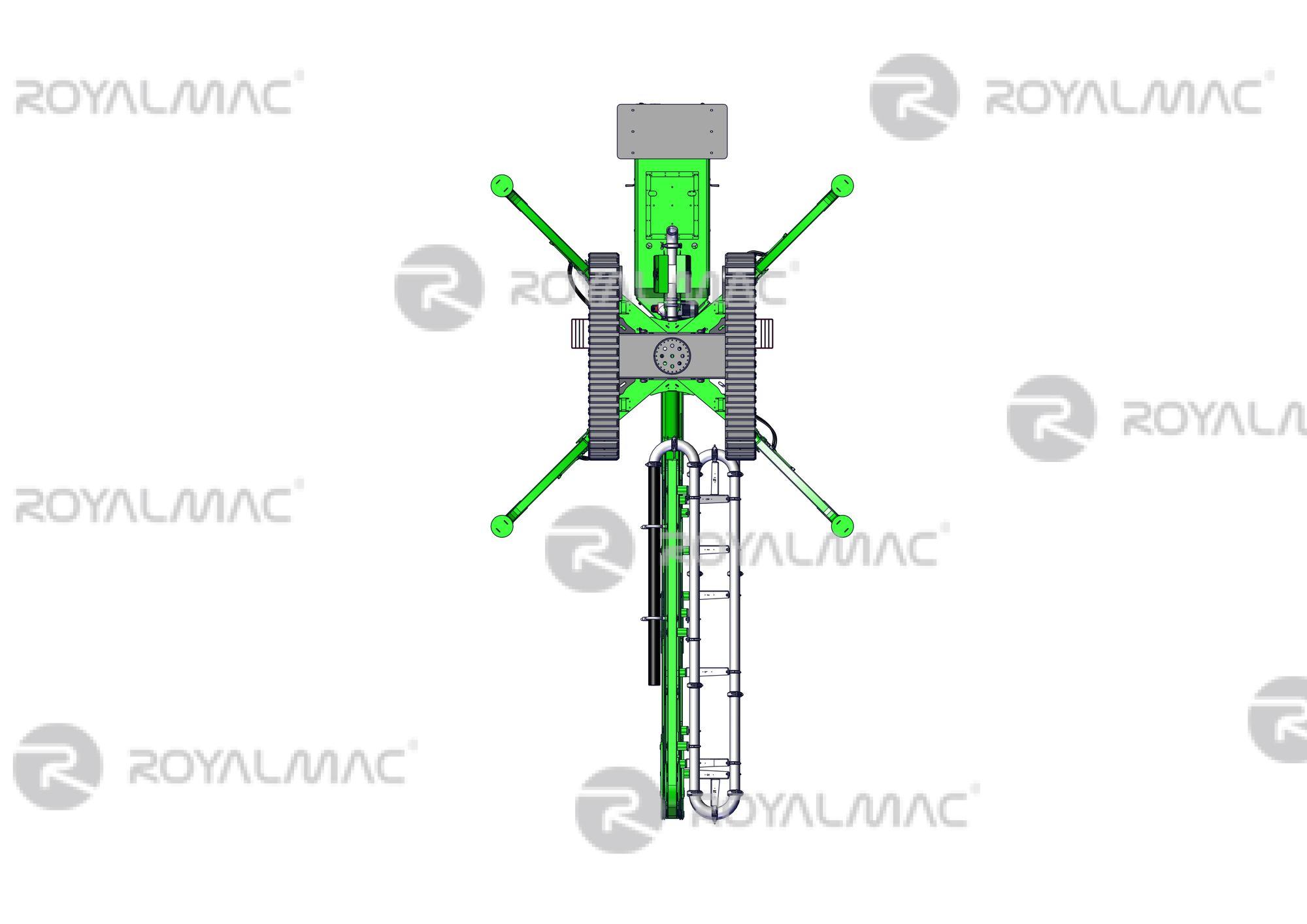

GALLERY AND TECHNICAL DRAWING
